- 304 stainless steel construction.
- Multi-directional drive, suitable for different nozzle types.
- For fresh- and pool water.
- Swing angle: Rotation range above the water surface up to 120°

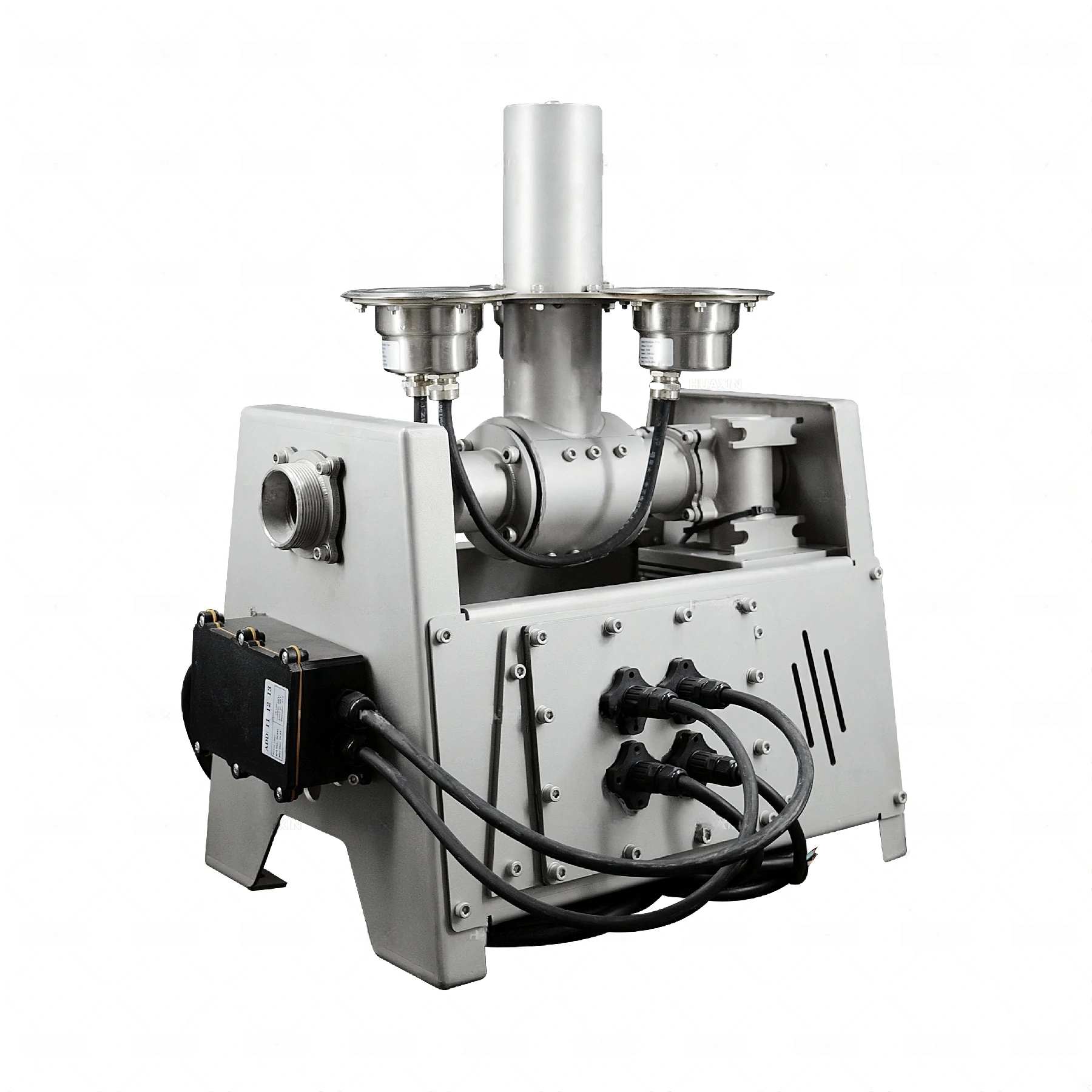

- The Multi-directional Drive 1D/DMX512 can control the running direction of the stepper motor through software and console to make the water column present various performances.
- The 4mm plate bending process is used to enhance the overall stability of the equipment.
- The equipment’s main power source and control (internal control board, drive, switching power supply) are integrated, which reduces the cost of cables, control cabinets, and control rooms for customers.
- The integrated DMX512 lighting device allows the light to better follow the water column. Compared with conventional CNC equipment, the Multi-directional Drive 1D/DMX512 can better reflect the perfect combination of water and light.
| Material | Stainless Steel 304 |
| Diameter (DN） | DN50 |
| Size (mm) | L380*W480*H500 |
| Total Weight | 37.5kg |
| Reduction Ratio | 1:10 |
| Working Voltage Of Stepper Motor | DC60V-90V |
| Lift | 8-15m |
| Total Power | 300W |
| The Number Of Phases Of The Stepper Motor | Two Phase |
| The Maximum Torque Of The Stepper Motor | 8.5(N.M) |
| Sensor Voltage | DC24V |
| Recommended Working Cables | JHS 2*6mm² |
| Recommended Control Cable | PVVP 3*1.5mm² |
| Lighting Configuration | HX130GM-DC24V-3*6W (Internal Control) |
